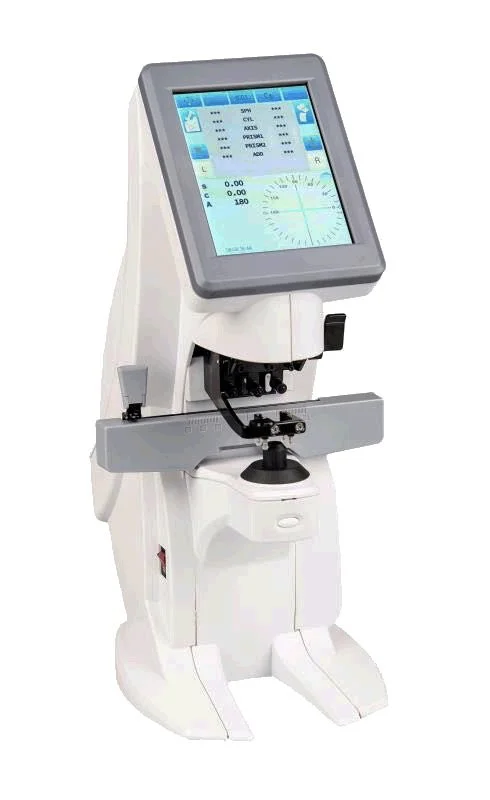

GOE ALM-900 AUTO Lensmeter

Thermal Printer included

5.6" full color touch screen that can be changed to black/white
Wide range of measurement from -40D to +25D UV,
Blue ray, and visible light transmittance measurement available
Hartman Sensor enables measurement of a wide variety of lenses
Auto calibration to calibrate fine errors during measurement
RS-232C and USB port for data transfer

Specification:

SPHERE:            -40.00D- +40.00D--optical lenses

CYLINDER:          0.00D-±10.00D(-,MIX,+)
                         (0.01D/0.12D/0.25DSTEPS)
AXIS:                0°-180°（1°STEPS）
ADD:                 0.00D-±10.00D(Add and Ad2)
                         (0.01D/0.12D/0.25DSTEPS)
PRISM:              0.00△-10.00△（horizontal ,vertical）
                         (0.01D/0.12D/0.25DSTEPS)
PRISM MODE:      △，θ，Base in/Out,Base Up/Down
PD MEASURING:   20.0-49.5MM(left/right)

LENS DIAMETER:   Φ20MM-Φ100MM
                         Φ5MM--CONTACT LENS DIAMETER
UV:                   ＞10%（±15.00D-±25.00D, ＞20%）
ABBE:                 20-60
DISPLAY:             5.6" colorful TFT LCD
PRINTER:             thermal printer
DATA INTERFACE: RS-232, USB A
POWER:              AC100(±10%)-240(±10%)V 50/60HZ 40VA
DIMENSIONS:       190（W）×205(D) ×418(D)MM
WEIGHT: 9.9lbs / 4.5KG
